Commercial Stick Noodles Production Line 43t/24h Fresh Noodle Equipment

Henan Dongfang Noodle Machine Group Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Commercial Stick Noodles Production Line 43t/24h Fresh Noodle Equipment

  • 1
  • 2

Brand Name : Dongfang

Model Number : HNT-850

Certification : ISO9001, CE

Place of Origin : Henan, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200 sets per year

Delivery Time : 60-120days

Packaging Details : Simple packaging; wooden box packaging

Name : HNT-850

Warranty : 1 Year

Power(w) : 136KW

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Field maintenance and repair service,Field installation,commissioning and training,Online support

Weight : According to different model,According to capacity

Contact Now

Commercial Durable Stick Noodles Production Line Automatic Noodle Machine 43ton/24h

According to the development trend of the hanging type dry noodle industry, high production capacity, automation and low energy consumption are the new needs of large size stick noodle enterprises. Dongfang has carefully made new type 850 high-capacity, automatic stick noodle production equipment.

Technical Parameters:

Product Name Commercial Durable Stick Noodles Production Line
Production Capacity 43T/24h
Roller Size 850mm
Total Power 136KW
Equipment Area 110m Long * 10m Width
Material 304Stainless Steel

Product Features:

1. The electric appliance adopts digital control and touch screen display;

2. The temperature and humidity of the drying room are completely controlled by the computer and displayed on the screen;

3. It can realize remote monitoring and debugging, as well as fault diagnosis and analysis.

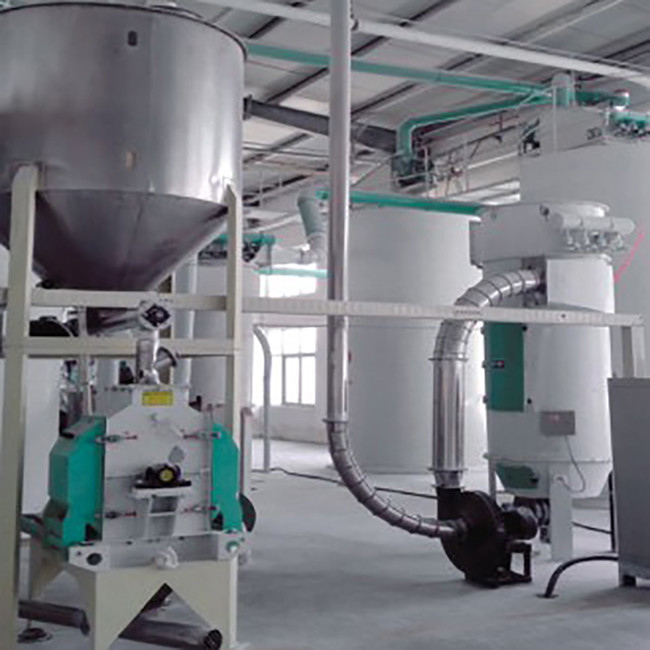

Dried Noodle Pieces Crushing System:

1 Purposes

The noodle crumb cut by the automatic single knife is fed into the crusher through the conveyor. The crusher cuts the noodle crumb into 10-20 mm and transports it to the air trap. It is sent to the mill through a high pressure blower, and then sent to the spiral separator in the upper part of the powder storage bin by the mill through the exhaust fan. The powder enters the storage bin through the air trap and enters the dust collector through the spiral separator.

2 Installation and commossinig of complete sets of equipment

The preparation work before installation of the equipment should be in place, and the center line of each single machine must be unified. Each single machine should be in full contact with the ground. If there is poor contact with the ground due to ground roughness, the place should be padded with iron.

3 Installation

Place the single machine in place according to the requirements of the equipment layout plan. The center line of each single machine must be unified. Each single machine should be in full contact with the ground. If there is poor contact with the ground due to ground roughness, the place should be padded with iron.

Commercial Stick Noodles Production Line 43t/24h Fresh Noodle Equipment
